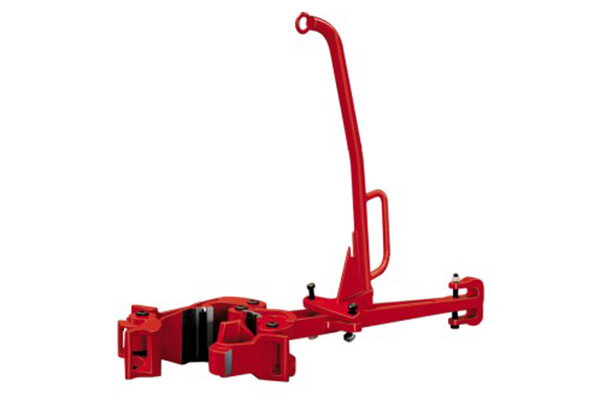

WWB Manual Tong

The WWB Manual Tong is an essential tool in oil drilling operations, designed to fasten or remove the screws of drill pipes and casing joints or couplings. Its versatility is enhanced by the ability to adjust it through changing latch lug jaws.

The WWB Elevator Tong is part of the Web Wilson series of products, sharing the same product line as the AAX type elevator tong.

---

Key Specifications

• Maximum Torque: 48 KN·m

---

Latch Lug Jaws Specifications

No.of Latch Lug Jaws	Size Range		Rated Torque
	in	mm	lb·ft	KN·m
1#	2 3/8-3 3/4	60.3-95.25	35000	48
2#	3 1/2-4 5/8	88.9-117.48
3#	4 1/2-5 3/4	114.3-146.05
4#	5 1/4-7 1/4	133.35-184.15
5#	6 7/8-8 5/8	174.63-219.08
6#	9-10 3/4	228.6-273.05	25000	35

This product is ideal for oil drilling operations, offering reliability and adaptability for various pipe sizes and torque requirements.
